ViewSafe Screen | S-F01-VS

  • Covertex ViewSafe Screens help guard your workplace against contaminants & equipment hazards common to manufacturing environments. Particular applications include machine room & work centre dividers.

  • Standard features include Allen Key couplings for rapid assembly and removal for clearway access.

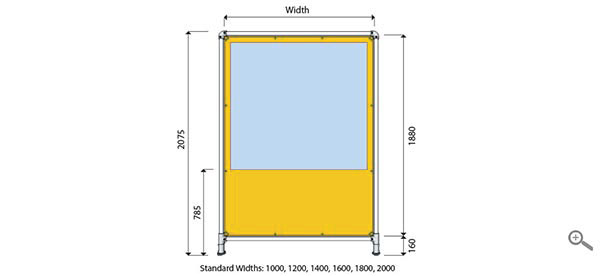

Design
Features

Australian Made

ViewSafe screens are custom manufactured in Australia by Covertex and can be retrofitted into most warehouse & factory areas without building additions.


Operational Ease

Screens are fitted with pregalvanised pipes that can be quickly disassembled providing minimum productivity disruption.


Material Construction

Screens are manufactured from clear "Achilles" fabric and PVC/Polyester Reinforced Vinyl to satisfy the most demanding of industrial sites. Hardware is zinc coated and designed for extended service life.


Kit Supply

Each screen partition is supplied in documented in kit format for easy site installation that can be completed by semi-skilled labour.

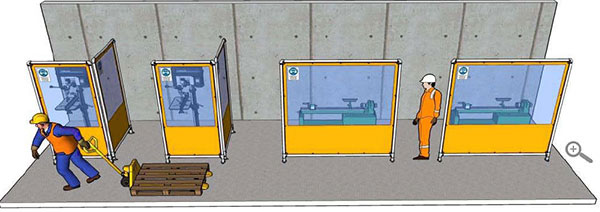

Configuration Options
Add multiple screen units to isolate work centres
Specifications
Item Description
Upper Screen Material Clear PVC "Achilles" 0.50
Lower Screen Material CTX 680 gsm FR PVC/Poly - Safety Yellow
Hems 50mm CTX 680 gsm FR PVC/Poly - HF Welded
Eyelets SP4 Brass - Spur
Cable Ties 4.8mm UV Stabilised
Frame 25 NB (33.7 OD) Pregalvanised Pipe
Couples Galvanised
Anchors "Ramset" M8 Dynaset Flush Head (removable)
Options Ground Contact Debris Skirt
Vertical Flashing Cover for Adjacent Units
Safety Signs - 180 x 250 PSV
Base Stands & Castor Assemblies
Standard Colour Range

Yellow

Green

Blue

White

Black
